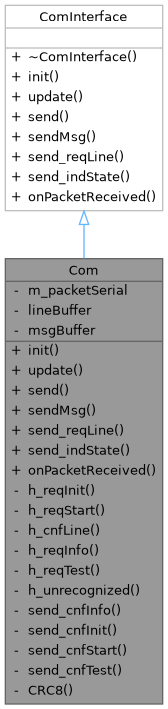

Inheritance diagram for Com:

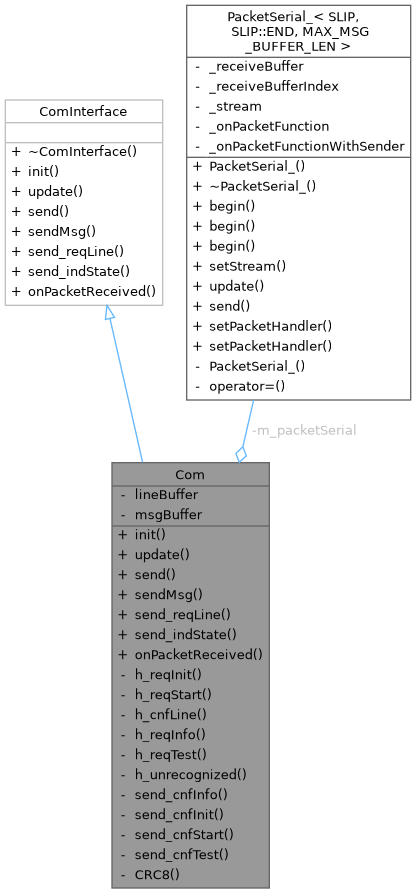

Collaboration diagram for Com:

Public Member Functions
void	init () final
	Initialize serial communication.

void	update () final
	Service the serial connection.

void	send (uint8_t *payload, size_t length) const final
	Send a packet of data.

void	sendMsg (AYAB_API_t id, const char *msg) final
	send initial msgid followed by null-terminated string

void	send_reqLine (const uint8_t lineNumber, Err_t error=ErrorCode::success) const final
	Send `reqLine` message.

void	send_indState (Carriage_t carriage, uint8_t position, Err_t error=ErrorCode::success) const final
	Send `indState` message.

void	onPacketReceived (const uint8_t *buffer, size_t size) final
	Callback for PacketSerial.

Private Member Functions
void	h_reqInit (const uint8_t *buffer, size_t size)
	Handle `reqInit` (request initialization) command.

void	h_reqStart (const uint8_t *buffer, size_t size)
	Handle `reqStart` (start request) command.

void	h_cnfLine (const uint8_t *buffer, size_t size)
	Handle `cnfLine` (configure line) command.

void	h_reqInfo () const
	Handle `reqInfo` (request information) command.

void	h_reqTest () const
	Handle `reqTest` (request hardware test) command.

void	h_unrecognized () const
	Handle unrecognized command.

void	send_cnfInfo () const
	Send `cnfInfo` message.

void	send_cnfInit (Err_t error) const
	Send `cnfInit` message.

void	send_cnfStart (Err_t error) const
	Send `cnfStart` message.

void	send_cnfTest (Err_t error) const
	Send `cnfTest` message.

uint8_t	CRC8 (const uint8_t *buffer, size_t len) const
	Calculate CRC8 of a buffer.

Private Attributes
PacketSerial_< SLIP, SLIP::END, MAX_MSG_BUFFER_LEN >	m_packetSerial

uint8_t	lineBuffer [MAX_LINE_BUFFER_LEN] = {0}

uint8_t	msgBuffer [MAX_MSG_BUFFER_LEN] = {0}

Member Function Documentation

◆ CRC8()

uint8_t Com::CRC8	(	const uint8_t *	buffer,
		size_t	len
	)		const

private

Calculate CRC8 of a buffer.

Parameters

buffer	A pointer to a data buffer.
len	The number of bytes of data in the data buffer.

Based on https://www.leonardomiliani.com/en/2013/un-semplice-crc8-per-arduino/

CRC-8 - based on the CRC8 formulas by Dallas/Maxim code released under the therms of the GNU GPL 3.0 license

Faster code using a lookup table is available, if needed.

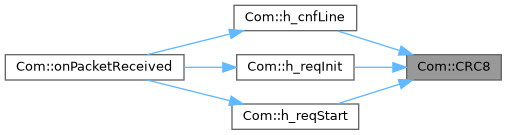

Here is the caller graph for this function:

◆ h_cnfLine()

void Com::h_cnfLine	(	const uint8_t *	buffer,
		size_t	size
	)

private

Handle cnfLine (configure line) command.

Parameters

buffer	A pointer to a data buffer.
size	The number of bytes in the data buffer.

Todo:

sl: Handle CRC-8 error?

sl: Assert size? Handle error?

References CRC8().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ h_reqInfo()

void Com::h_reqInfo ( ) const

private

Handle reqInfo (request information) command.

Parameters

buffer	A pointer to a data buffer.
size	The number of bytes in the data buffer.

References send_cnfInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ h_reqInit()

void Com::h_reqInit	(	const uint8_t *	buffer,
		size_t	size
	)

private

Handle reqInit (request initialization) command.

Parameters

buffer	A pointer to a data buffer.
size	The number of bytes in the data buffer.

References CRC8(), and send_cnfInit().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ h_reqStart()

void Com::h_reqStart	(	const uint8_t *	buffer,
		size_t	size
	)

private

Handle reqStart (start request) command.

Parameters

buffer	A pointer to a data buffer.
size	The number of bytes in the data buffer.

References CRC8(), and send_cnfStart().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ h_reqTest()

void Com::h_reqTest ( ) const

private

Handle reqTest (request hardware test) command.

Parameters

buffer	A pointer to a data buffer.
size	The number of bytes in the data buffer.

References send_cnfTest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ init()

void Com::init ( )

finalvirtual

Initialize serial communication.

Implements ComInterface.

References PacketSerial_< EncoderType, PacketMarker, BufferSize >::begin(), and PacketSerial_< EncoderType, PacketMarker, BufferSize >::setPacketHandler().

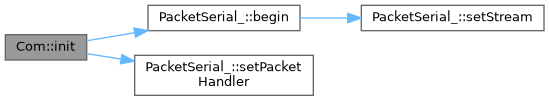

Here is the call graph for this function:

◆ onPacketReceived()

void Com::onPacketReceived	(	const uint8_t *	buffer,
		size_t	size
	)

finalvirtual

Callback for PacketSerial.

Parameters

buffer	A pointer to a data buffer.
size	The number of bytes in the data buffer.

Implements ComInterface.

References h_cnfLine(), h_reqInfo(), h_reqInit(), h_reqStart(), h_reqTest(), and h_unrecognized().

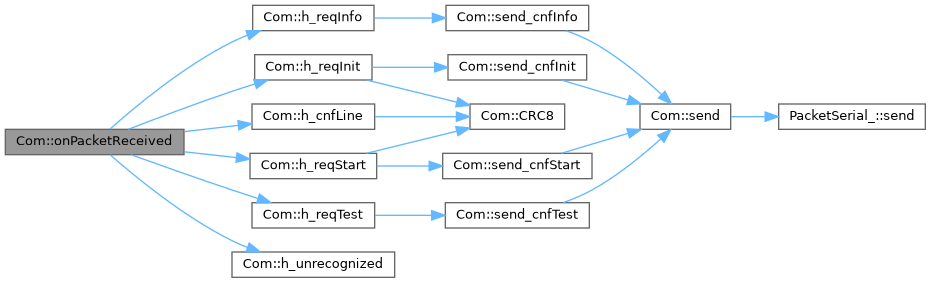

Here is the call graph for this function:

◆ send()

void Com::send	(	uint8_t *	payload,
		size_t	length
	)		const

finalvirtual

Send a packet of data.

Parameters

payload	A pointer to a data buffer.
length	The number of bytes in the data buffer.

Implements ComInterface.

References PacketSerial_< EncoderType, PacketMarker, BufferSize >::send().

Here is the call graph for this function:

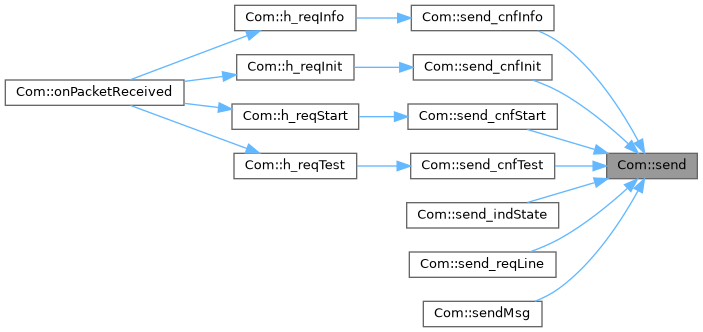

Here is the caller graph for this function:

◆ send_cnfInit()

void Com::send_cnfInit ( Err_t error ) const

private

Send cnfInit message.

Parameters

error Error code (0 = success, other values = error).

References send().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_cnfStart()

void Com::send_cnfStart ( Err_t error ) const

private

Send cnfStart message.

Parameters

error Error code (0 = success, other values = error).

References send().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_cnfTest()

void Com::send_cnfTest ( Err_t error ) const

private

Send cnfTest message.

Parameters

error Error code (0 = success, other values = error).

References send().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_indState()

void Com::send_indState	(	Carriage_t	carriage,
		uint8_t	position,
		Err_t	error = `ErrorCode::success`
	)		const

finalvirtual

Send indState message.

Parameters

carriage	Type of knitting carriage in use.
position	Position of knitting carriage in needles from left hand side.
initState	State of readiness (0 = ready, other values = not ready).

Implements ComInterface.

References send().

Here is the call graph for this function:
