Knitter Class Reference

Inheritance diagram for Knitter:

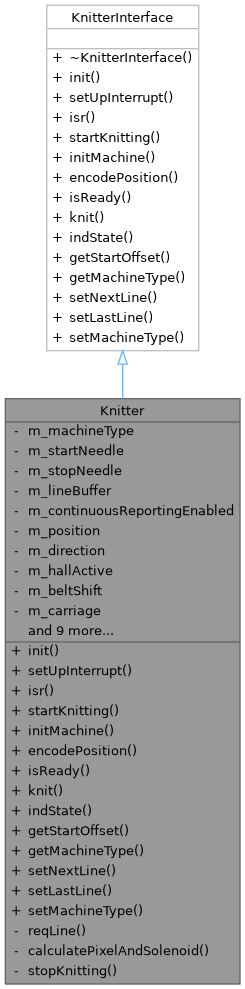

Collaboration diagram for Knitter:

Public Member Functions
void	init () final
	Initialize Knitter object.
void	setUpInterrupt () final
	Initialize interrupt service routine for Knitter object.
void	isr () final
	Interrupt service routine.
Err_t	startKnitting (uint8_t startNeedle, uint8_t stopNeedle, uint8_t *pattern_start, bool continuousReportingEnabled) final
	Enter OpState::knit machine state.
Err_t	initMachine (Machine_t machine) final
	Initialize machine type.
void	encodePosition () final
	Record current encoder position.
bool	isReady () final
	Assess whether the Finite State Machine is ready to move from state OpState::init to OpState::ready.
void	knit () final
	Function that is repeatedly called during state OpState::knit
void	indState (Err_t error=ErrorCode::success) final
	Send indState message.
uint8_t	getStartOffset (const Direction_t direction) final
	Get start offset.
Machine_t	getMachineType () final
	Get knitting machine type.
bool	setNextLine (uint8_t lineNumber) final
	Set line number of next row to be knitted.
void	setLastLine () final
	Get value of last line flag.
void	setMachineType (Machine_t) final
	Set machine type.

Private Member Functions
void	reqLine (uint8_t lineNumber)
	Send reqLine message.
bool	calculatePixelAndSolenoid ()
	Calculate the solenoid and pixel to be set.
void	stopKnitting () const
	Finish knitting procedure.

Private Attributes
Machine_t	m_machineType
uint8_t	m_startNeedle
uint8_t	m_stopNeedle
uint8_t *	m_lineBuffer
bool	m_continuousReportingEnabled
uint8_t	m_position
Direction_t	m_direction
Direction_t	m_hallActive
BeltShift_t	m_beltShift
Carriage_t	m_carriage
bool	m_lineRequested
uint8_t	m_currentLineNumber
bool	m_lastLineFlag
uint8_t	m_sOldPosition
bool	m_firstRun
bool	m_workedOnLine
Direction_t	m_lastHall
uint8_t	m_solenoidToSet
uint8_t	m_pixelToSet

Member Function Documentation

calculatePixelAndSolenoid()

bool Knitter::calculatePixelAndSolenoid ( )

private

Calculate the solenoid and pixel to be set.

Returns

true if successful, false otherwise.

References getStartOffset().

Here is the call graph for this function:

Here is the caller graph for this function:

encodePosition()

void Knitter::encodePosition ( )

finalvirtual

Record current encoder position.

Used in hardware test procedure.

Implements KnitterInterface.

References calculatePixelAndSolenoid(), and indState().

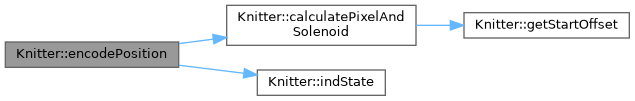

Here is the call graph for this function:

getMachineType()

Machine_t Knitter::getMachineType ( )

finalvirtual

Get knitting machine type.

Returns

Machine type.

Implements KnitterInterface.

getStartOffset()

uint8_t Knitter::getStartOffset ( const Direction_t  direction )

finalvirtual

Get start offset.

Returns

Start offset, or 0 if unobtainable.

Implements KnitterInterface.

Here is the caller graph for this function:

indState()

void Knitter::indState ( Err_t  error = ErrorCode::success )

finalvirtual

Send indState message.

Parameters

error

Error state (0 = success, other values = error).

Implements KnitterInterface.

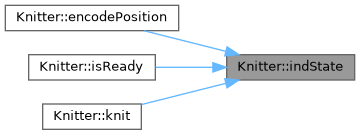

Here is the caller graph for this function:

init()

void Knitter::init ( )

finalvirtual

Initialize Knitter object.

Initialize the solenoids as well as pins and interrupts.

Implements KnitterInterface.

initMachine()

Err_t Knitter::initMachine ( Machine_t  machineType )

finalvirtual

Initialize machine type.

Parameters

machineType

Machine type.

Returns

Error code (0 = success, other values = error).

Implements KnitterInterface.

References setUpInterrupt().

Here is the call graph for this function:

isr()

void Knitter::isr ( )

finalvirtual

Interrupt service routine.

Update machine state data. Must execute as fast as possible. Machine type assumed valid.

Implements KnitterInterface.

isReady()

bool Knitter::isReady ( )

finalvirtual

Assess whether the Finite State Machine is ready to move from state OpState::init to OpState::ready.

Returns

true if ready to move from state OpState::init to OpState::ready, false otherwise.

Implements KnitterInterface.

References indState().

Here is the call graph for this function:

knit()

void Knitter::knit ( )

finalvirtual

Function that is repeatedly called during state OpState::knit

Implements KnitterInterface.

References calculatePixelAndSolenoid(), indState(), reqLine(), and stopKnitting().

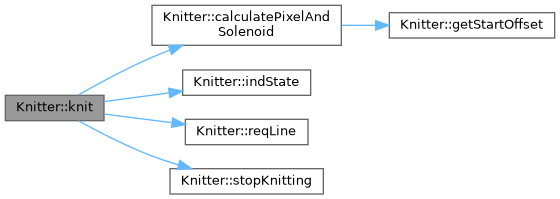

Here is the call graph for this function:

reqLine()

void Knitter::reqLine ( uint8_t  lineNumber )

private

Send reqLine message.

Parameters

lineNumber

Line number requested.

Here is the caller graph for this function:

setLastLine()

void Knitter::setLastLine ( )

finalvirtual

Get value of last line flag.

Parameters

`true`

if current line is the last line in the pattern, false otherwise.

Implements KnitterInterface.

setMachineType()

void Knitter::setMachineType ( Machine_t  machineType )

finalvirtual

Set machine type.

Parameters

Machine

type.

Implements KnitterInterface.

setNextLine()

bool Knitter::setNextLine ( uint8_t  lineNumber )

finalvirtual

Set line number of next row to be knitted.

Parameters

lineNumber

Line number (0-indexed and modulo 256).

Returns

true if successful, false otherwise.

Implements KnitterInterface.

References reqLine().

Here is the call graph for this function:

setUpInterrupt()

void Knitter::setUpInterrupt ( )

finalvirtual

Initialize interrupt service routine for Knitter object.

Implements KnitterInterface.

Here is the caller graph for this function:

startKnitting()

Err_t Knitter::startKnitting ( uint8_t  startNeedle, uint8_t  stopNeedle, uint8_t *  pattern_start, bool  continuousReportingEnabled  )

finalvirtual

Enter OpState::knit machine state.

Parameters

startNeedle	Position of first needle in the pattern.
stopNeedle	Position of last needle in the pattern.
patternStart	Pointer to buffer containing pattern data.
continuousReportingEnabled	Flag variable indicating whether the device continuously reports its status to the host.

Returns

Error code (0 = success, other values = error).

Implements KnitterInterface.

---

The documentation for this class was generated from the following files:

• src/ayab/knitter.h
• src/ayab/knitter.cpp
• test/mocks/knitter_mock.cpp
